8-bit RISC microcontroller featuring a PIC core, operating at up to 20MHz. Offers 3.5KB FLASH memory, 128B RAM, and 24 I/O pins with 25 programmable I/O. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, 17 ADC channels, and 2 PWM channels. Operates from 2.3V to 5.5V, with a temperature range of -40°C to 85°C. Includes a watchdog timer and brown-out detect/reset.
Frequency20MHz
Quick Jump:
Technical Specifications
Microchip PIC16F1512-I/MV technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.5mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
4mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of ADC Channels
17
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1512-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1512-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

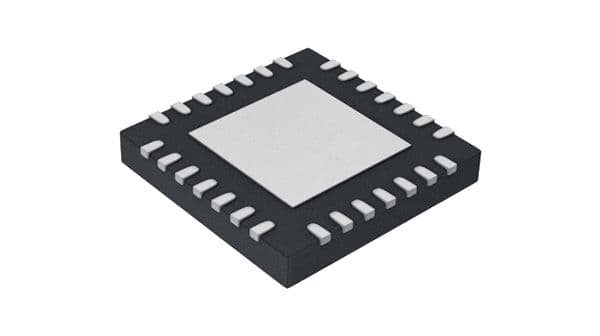

Product Images
