8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 20MHz. This surface mount device offers 3.5KB of FLASH memory and 128KB of RAM, with 25 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 3 timers/counters, and a watchdog timer. Designed for a supply voltage range of 2.3V to 5.5V, it operates from -40°C to 85°C and is RoHS compliant.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1512T-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Programmable I/O
25
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1512T-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1512T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

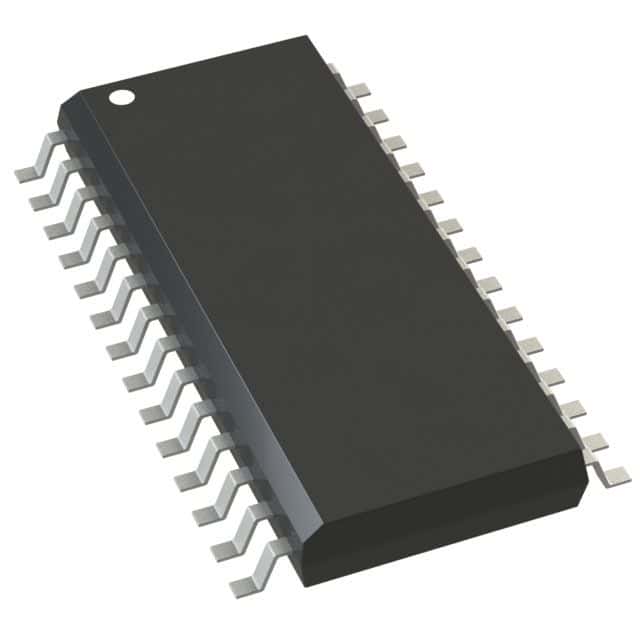

Product Images
