Microchip
PIC16F1516T-I/SS
8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Frequency20MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16F1516T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART, LIN
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of I/Os
24
Number of Programmable I/O
25
Number of Timers/Counters
3
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1516T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1516T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

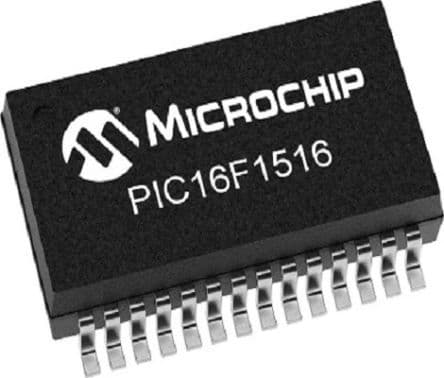

Product Images
