8-bit RISC microcontroller featuring 14KB FLASH memory and 512B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 35 I/O pins, including 36 programmable I/Os, and supports I2C, SPI, and UART interfaces. Includes 2 PWM channels, 3 timers/counters, and 28 ADC channels with 1 A/D converter. Packaged in a TQFP with a 2.5V to 5.5V supply voltage range and an operating temperature of -40°C to 85°C.
Frequency20MHz
PackageTQFP
Current1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1517-I/PT technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.041inch
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
0.393inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
28
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
1mA
Watchdog Timer
Yes
Width
0.394inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1517-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F1517-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

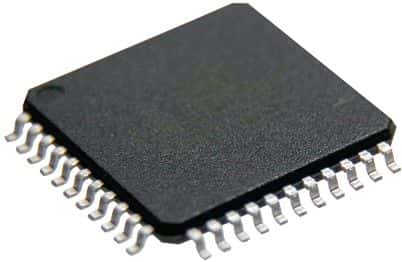

Product Images
