8-bit RISC Flash Microcontroller, operating at up to 20MHz. Features 14KB Flash program memory, 512 Bytes RAM, and 36 programmable I/O pins. Integrated peripherals include I2C, SPI, USART, UART interfaces, 3 timers/counters, and a watchdog timer. Operates from 2.5V to 5.5V supply voltage with a temperature range of -40°C to 85°C. Packaged in a 40-pin QFN, tape and reel.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1517T-I/MV technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1517T-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1517T-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

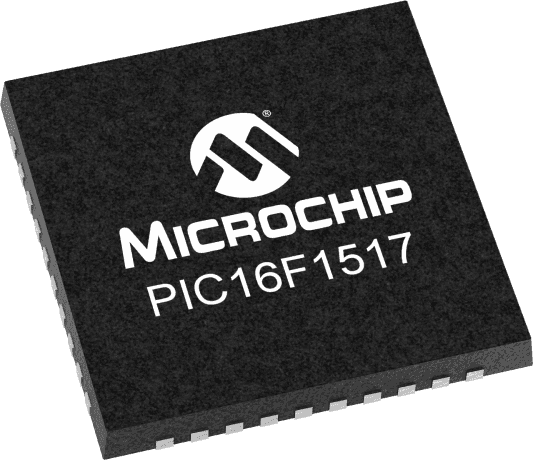

Product Images
