8-bit RISC microcontroller featuring 20 MHz operation, 28KB FLASH memory, and 1KB RAM. This PDIP-packaged MCU offers 24 I/O pins, including 25 programmable I/O, and supports I2C, SPI, and USART/UART interfaces. Operating from 2.5V to 5.5V, it includes three timers/counters, internal oscillator, and peripherals like PWM, WDT, and brown-out detect. With a temperature range of -40°C to 125°C and RoHS compliance, this component is designed for efficient embedded applications.
Frequency20MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16F1518-E/SP technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of I/Os
24
Number of Programmable I/O
25
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1518-E/SP Datasheet
Download the complete datasheet for Microchip PIC16F1518-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

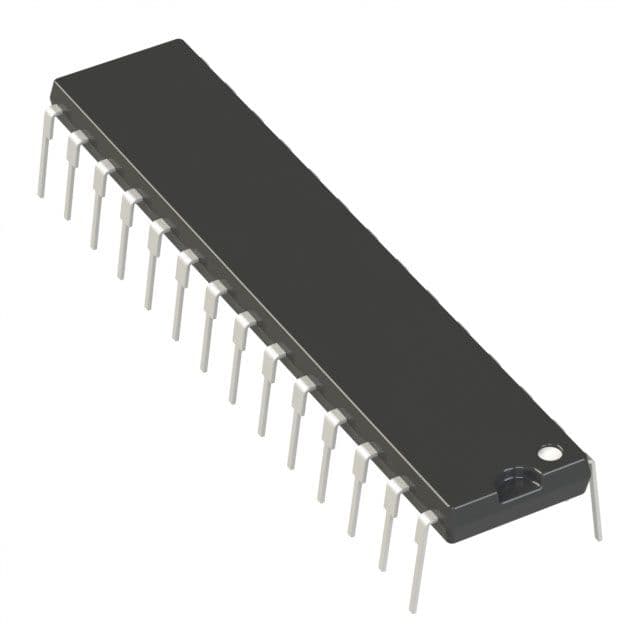

Product Images
