8-bit RISC microcontroller featuring 28KB FLASH memory and 1KB RAM. Operates at up to 20MHz with an internal oscillator. Supports I2C, SPI, and USART/UART interfaces. Offers 35 I/Os, 3 timers/counters, and integrated peripherals including PWM and watchdog timer. Operates from 2.5V to 5.5V, with a max power dissipation of 800mW and an operating temperature range of -40°C to 125°C.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1519-E/MV technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SPI, USART, UART
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
3
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1519-E/MV Datasheet
Download the complete datasheet for Microchip PIC16F1519-E/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

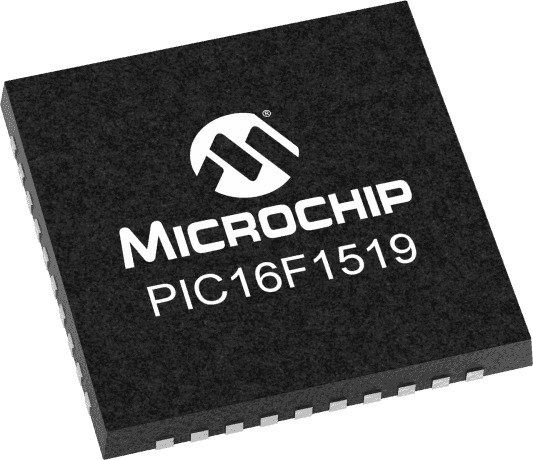

Product Images
