Microchip
PIC16F1526-E/MR
8-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PQCC64, 9 X 9 MM, LEAD FREE, PLASTIC, QFN-64
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1526-E/MR technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
2.5V
Number of I/Os
53
Number of Programmable I/O
54
Number of Timers/Counters
9
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1526-E/MR Datasheet
Download the complete datasheet for Microchip PIC16F1526-E/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

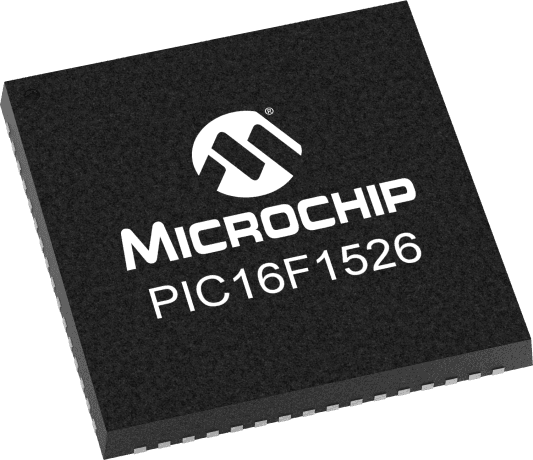

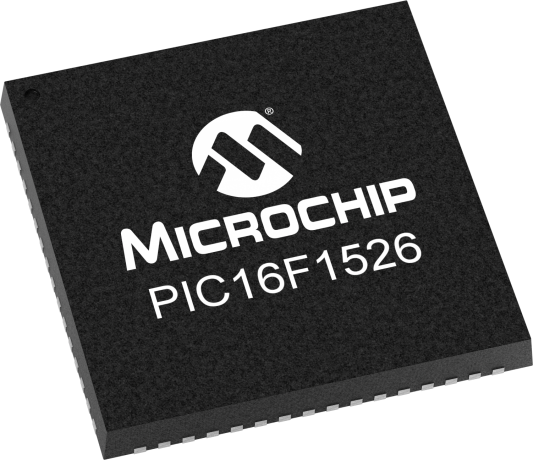

Product Images
