8-bit RISC microcontroller featuring 20MHz clock speed and 28KB FLASH memory. This integrated circuit offers 1536 bytes of RAM and supports I2C, SPI, UART, USART, and LIN interfaces. With 53 I/O pins, including 54 programmable I/O, and 10 PWM channels, it provides extensive connectivity. Operating from 2.5V to 5.5V, this lead-free, QFN-packaged microcontroller includes a watchdog timer and 30 ADC channels.
Frequency20MHz
PackageQFN
Current1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1527-I/MR technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
0.037inch
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
0.354inch
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
28KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
30
Number of Bits
8
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
54
Number of PWM Channels
10
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1536B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1mA
Watchdog Timer
Yes
Width
0.354inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1527-I/MR Datasheet
Download the complete datasheet for Microchip PIC16F1527-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

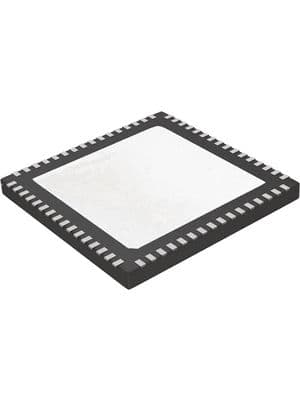

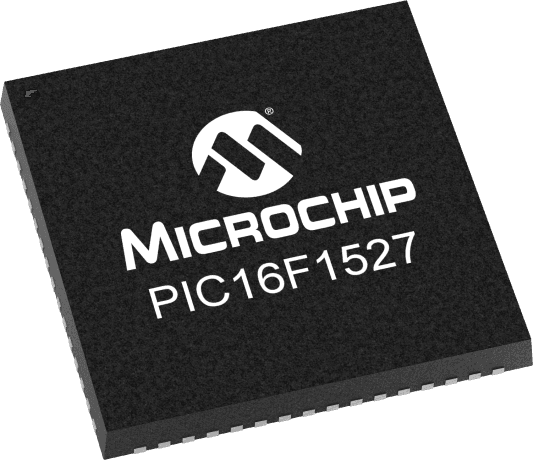

Product Images
