8-bit RISC microcontroller featuring 20MHz operation and 28KB FLASH memory. This integrated circuit offers 1.5KB RAM, 53 programmable I/Os, and supports SPI, I2C, UART, and USART interfaces. Includes 30 A/D converter channels, 10 PWM channels, and 9 timers/counters. Operates from 2.5V to 5.5V supply voltage with a temperature range of -40°C to 85°C. Packaged in a 64-pin TQFP (10x10mm).
Frequency20MHz
PackageTQFP
Current1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1527-I/PT technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.05mm
Interface
SPI, I2C, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
28KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of A/D Converters
1
Number of ADC Channels
30
Number of Bits
8
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
10
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
1mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1527-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F1527-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

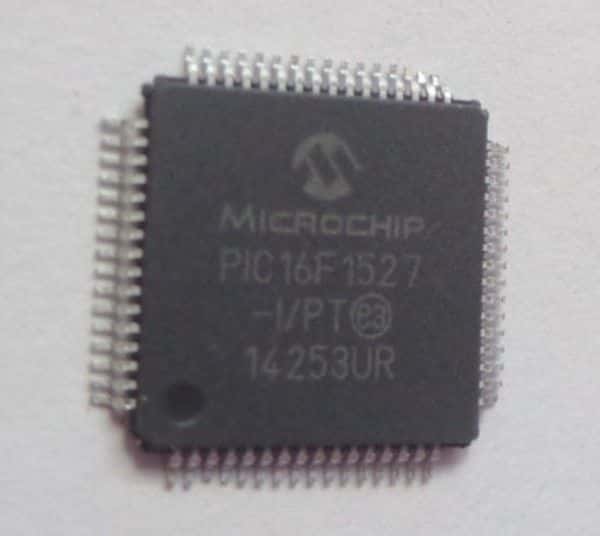

Product Images
