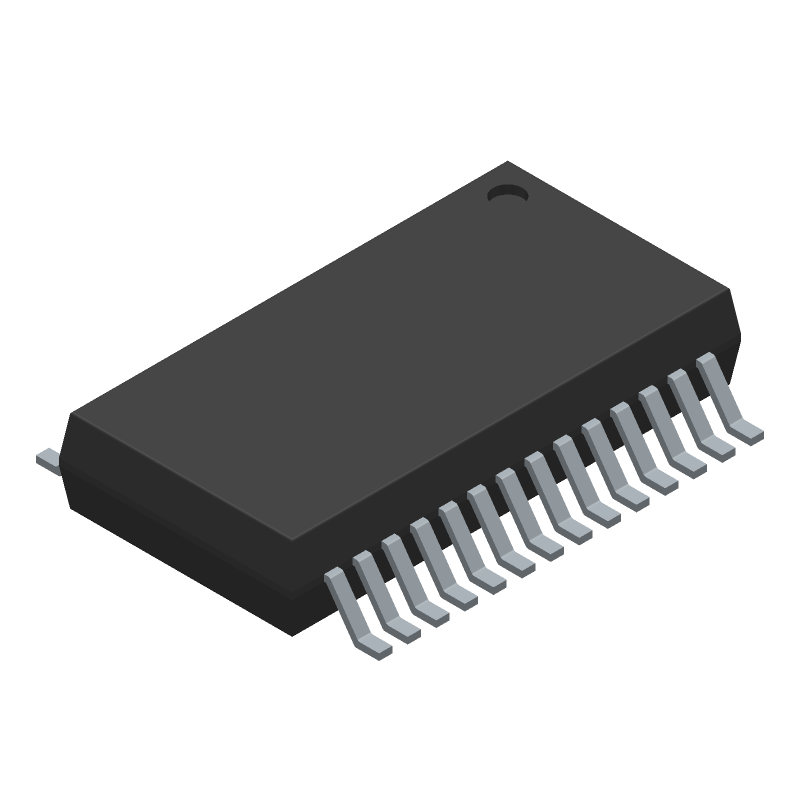

8-bit RISC microcontroller featuring 8192 words of FLASH program memory and 1024 bytes of RAM. Operates at a maximum clock frequency of 32 MHz with a supply voltage range of 2.5V to 5.5V. Includes 25 I/O lines, PWM channels, an ADC, and DAC channels. Packaged in a 28-terminal R-PDSO-G28 (SSOP) package, suitable for industrial temperature ranges from -40°C to 85°C.
Frequency32
Quick Jump:
Technical Specifications
Microchip PIC16F15355-I/SS technical specifications.
General
Max Operating Temperature
85
Number of Terminals
28
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDSO-G28
Width
5.3
Length
10.2
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom
3
Supply Voltage-Min
2.5
Supply Voltage-Max
5.5
Clock Frequency-Max
32
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
25
External Data Bus Width
0
Address Bus Width
0
Bit Size
8
Speed
32
ROM Programmability
FLASH
ROM (words)
8192
RAM (bytes)
1024
PWM Channels
YES
Has ADC
YES
DMA Channels
NO
DAC Channels
YES
Screening Level
TS 16949
Compliance
RoHS
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
Datasheet
Microchip PIC16F15355-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F15355-I/SS to view detailed technical specifications.
