8-bit RISC microcontroller featuring 7KB FLASH memory and 512B RAM. Operates at a maximum frequency of 32MHz with an 8-bit data bus. Includes 12 I/Os, 8 ADC channels, and 4 PWM channels, along with 3 timers/counters. Supports UART and USART interfaces, with an internal oscillator and brown-out detect/reset, POR, and WDT peripherals. Packaged in a TSSOP for surface mounting, with dimensions of 5mm length, 4.6mm width, and 1.2mm height, and operates from -40°C to 125°C.
Frequency32MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1574-E/ST technical specifications.
General
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Height
1.2mm
Interface
UART, USART
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
0
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® 16F
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1574-E/ST Datasheet
Download the complete datasheet for Microchip PIC16F1574-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

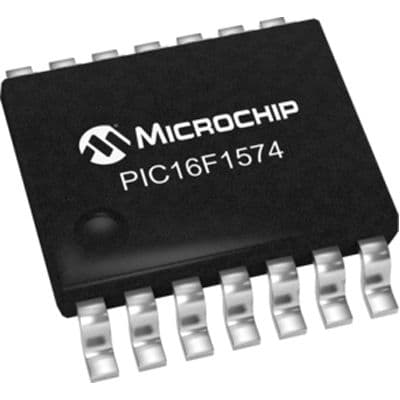

Product Images
