8-bit RISC microcontroller featuring a PIC core architecture, operating up to 32MHz. This surface mount component offers 7KB of FLASH memory and 512B of RAM, with 12 I/O pins. Integrated peripherals include UART, 8 ADC channels, 4 PWM channels, and 3 timers/counters. Designed for a wide operating temperature range of -40°C to 85°C, with an operating supply voltage up to 5.5V.
Frequency32MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1574-I/JQ technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Height
0.5mm
Interface
UART, USART
Length
4mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
0
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® 16F
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1574-I/JQ Datasheet
Download the complete datasheet for Microchip PIC16F1574-I/JQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

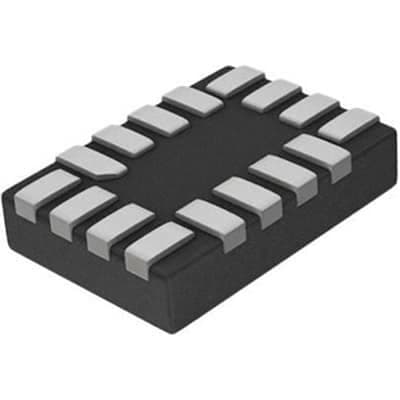

Product Images
