8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 7KB of FLASH memory and 512B of RAM, with 12 I/O pins. Integrated peripherals include 8 ADC channels, 4 PWM channels, 3 timers/counters, and UART/USART interfaces. Housed in a TSSOP package, it operates from -40°C to 85°C with a maximum supply voltage of 5.5V.
Frequency32MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1574T-I/ST technical specifications.
General
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Height
1.2mm
Interface
UART, USART
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
0
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® 16F
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1574T-I/ST Datasheet
Download the complete datasheet for Microchip PIC16F1574T-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

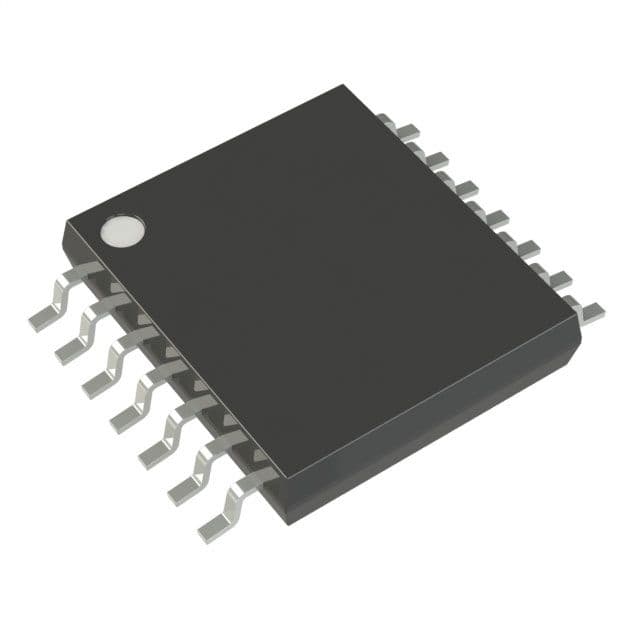

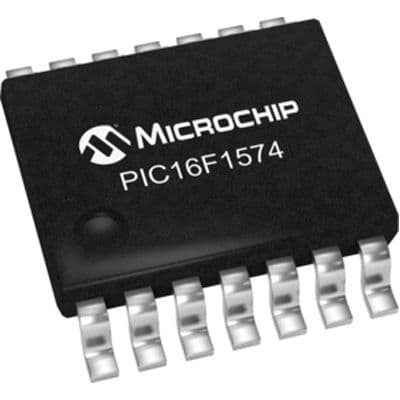

Product Images
