8-bit RISC microcontroller featuring 14KB FLASH memory and 1024B RAM. Operates at up to 32MHz with an internal oscillator and offers 12 I/Os, 8 ADC channels, and 4 PWM channels. Includes UART/USART interface, 3 timers/counters, and peripherals like Brown-out Detect/Reset, POR, and WDT. Surface mountable in a SOIC package, this component supports a wide operating temperature range of -40°C to 125°C and a maximum supply voltage of 5.5V.
Frequency32MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1575-E/SL technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Height
1.75mm
Interface
UART, USART
Length
8.65mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1024B
RoHS Compliant
Yes
Series
PIC® 16F
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1575-E/SL Datasheet
Download the complete datasheet for Microchip PIC16F1575-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

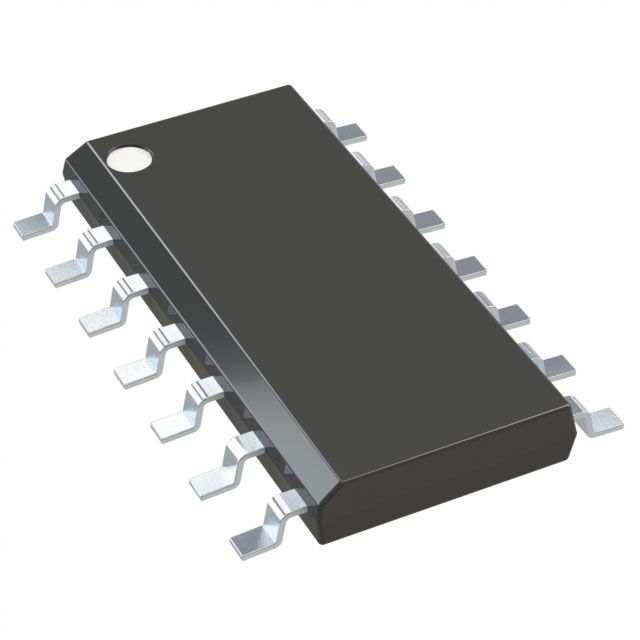

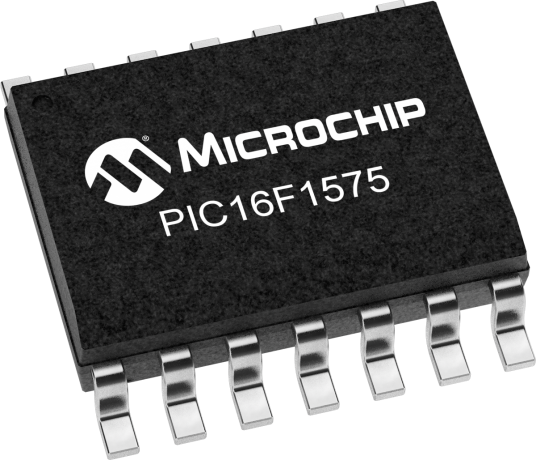

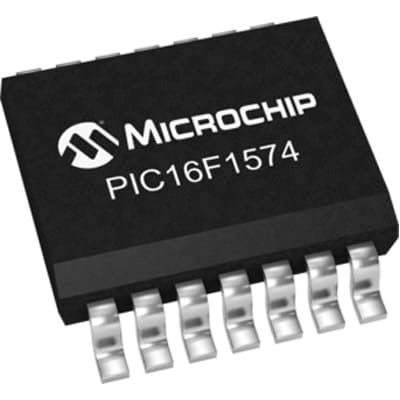

Product Images
