8-bit RISC microcontroller featuring a 32MHz core frequency and 14KB FLASH memory. This through-hole DIP package offers 12 I/Os, 8 ADC channels, and 4 PWM channels. Integrated peripherals include UART, Brown-out Detect/Reset, POR, and WDT. Operates from 2.3V to 5.5V supply voltage with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F1575-I/P technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.132inch
Interface
UART, USART
Lead Free
Lead Free
Length
0.75inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1024B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Width
0.25inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1575-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1575-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

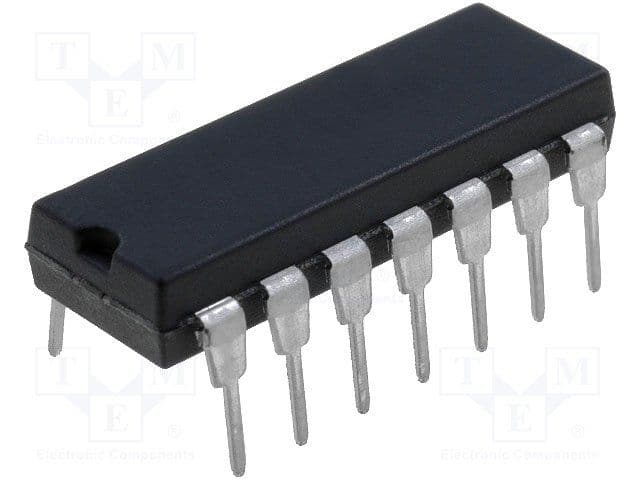

Product Images
