8-bit RISC microcontroller featuring a PIC core architecture. Operates at a maximum frequency of 32MHz with 14KB FLASH memory and 1024B RAM. Includes 12 I/Os, 8 ADC channels, 4 PWM channels, and 3 timers/counters. Interface capabilities include UART/USART. Packaged in a TSSOP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip PIC16F1575-I/ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip PIC16F1575-I/ST technical specifications.
General
| Package/Case | TSSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Height | 1.2mm |
| Interface | UART, USART |
| Length | 5mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 14KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of I/Os | 12 |
| Number of PWM Channels | 4 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Number of USB Channels | 0 |
| Operating Supply Voltage | 5.5V |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 1024B |
| RoHS Compliant | Yes |
| Series | PIC® 16F |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1575-I/ST Datasheet
Download the complete datasheet for Microchip PIC16F1575-I/ST to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

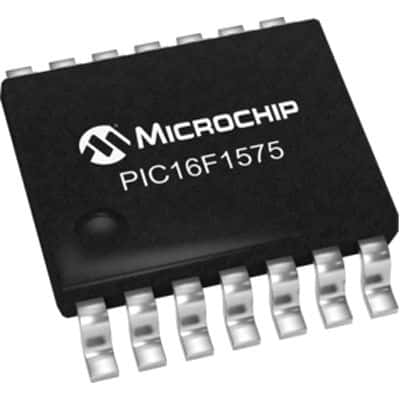

Product Images
