8-bit RISC microcontroller featuring 14KB FLASH memory and 1024B RAM. Operates at a maximum frequency of 32MHz with an 8-bit data bus. Includes 12 I/Os, 8 ADC channels, 4 PWM channels, and 3 timers/counters. Offers UART and USART interfaces, with an internal oscillator and surface mount TSSOP package. Suitable for operation between -40°C and 85°C with a maximum supply voltage of 5.5V.
Frequency32MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1575T-I/ST technical specifications.
General
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Height
1.2mm
Interface
UART, USART
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of PWM Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1024B
RoHS Compliant
Yes
Series
PIC® 16F
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1575T-I/ST Datasheet
Download the complete datasheet for Microchip PIC16F1575T-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

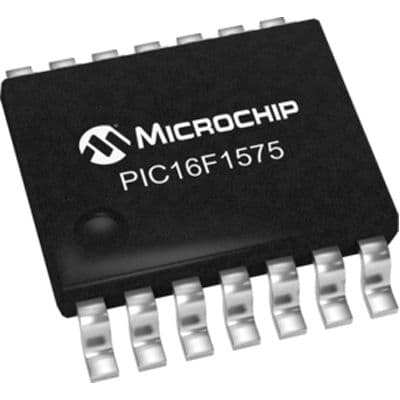

Product Images
