8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This integrated circuit offers 3.5KB of FLASH memory and 256B of RAM, with 12 programmable I/O pins. Equipped with 8 ADC channels, 2 PWM channels, and 2 timers/counters, it supports through-hole mounting in a PDIP package. Operating voltage ranges from 2.3V to 5.5V, with a temperature range of -40°C to 85°C.
Frequency32MHz
PackagePDIP
Current1.6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F1613-I/P technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.195inch
Lead Free
Lead Free
Length
0.775inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
FLASH,
Min Operating Temperature
40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
12
Number of Programmable I/O
12
Number of PWM Channels
2
Number of Timers/Counters
2
Number of UART Channels
0
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
1.6mA
Watchdog Timer
Yes
Weight
0.057144oz
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1613-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1613-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

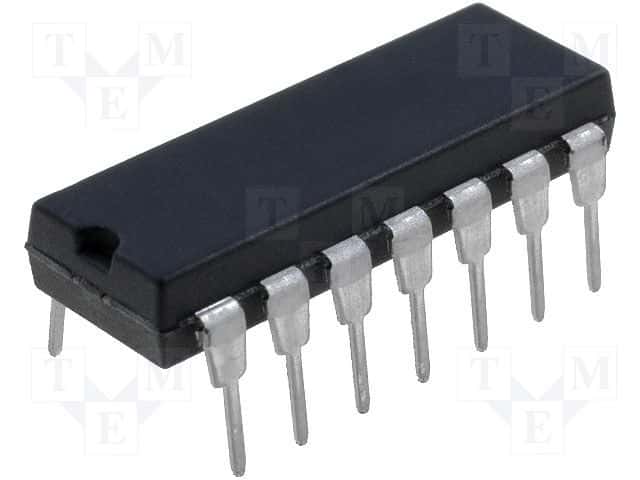

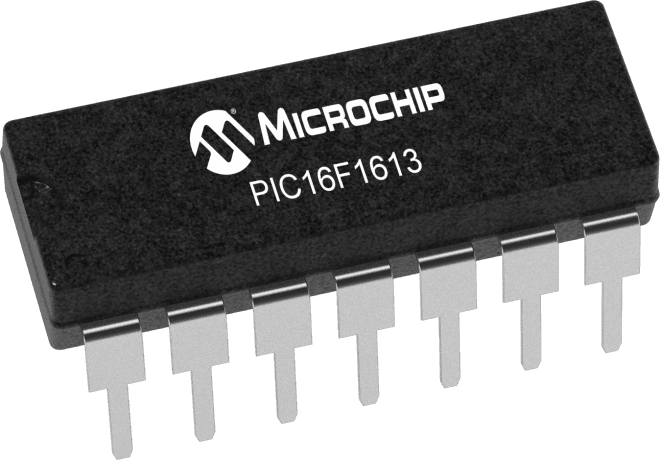

Product Images
