8-bit RISC microcontroller featuring a 32MHz core frequency and 7KB FLASH memory. This integrated circuit offers 12 programmable I/O pins, 8 ADC channels, and 2 PWM channels. Connectivity includes I2C, SPI, and UART interfaces, supported by 5 timers/counters and a watchdog timer. Operating within a 2.3V to 5.5V supply range, it is housed in a lead-free SOIC package.
Frequency32MHz
PackageSOIC
Current8uA
Quick Jump:
Technical Specifications
Microchip PIC16F1704-I/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.5mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
8.65mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
57
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
8uA
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1704-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1704-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

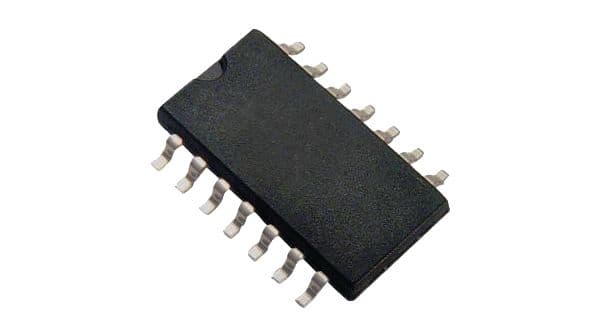

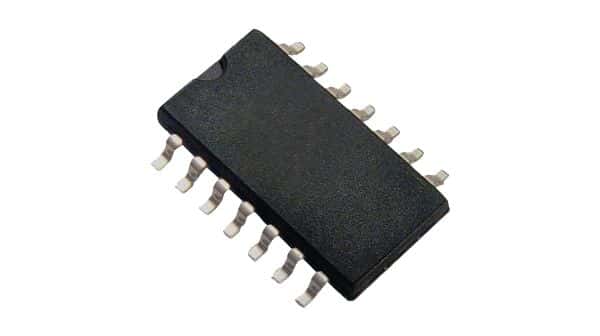

Product Images
