8-bit RISC microcontroller featuring 7KB FLASH memory and 512B RAM. Operates at up to 32MHz with an internal oscillator. Offers 12 programmable I/Os, 8 ADC channels, 2 PWM channels, and 5 timers/counters. Supports I2C, SPI, UART, USART, and LIN interfaces. Packaged in a 28-pin SOIC, operating from -40°C to 85°C.
Frequency32MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC16F1704T-I/SL technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Height
1.75mm
Interface
I2C, SPI, UART, USART, LIN
Length
8.65mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
8
Number of I/Os
12
Number of Programmable I/O
12
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
2600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1704T-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1704T-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

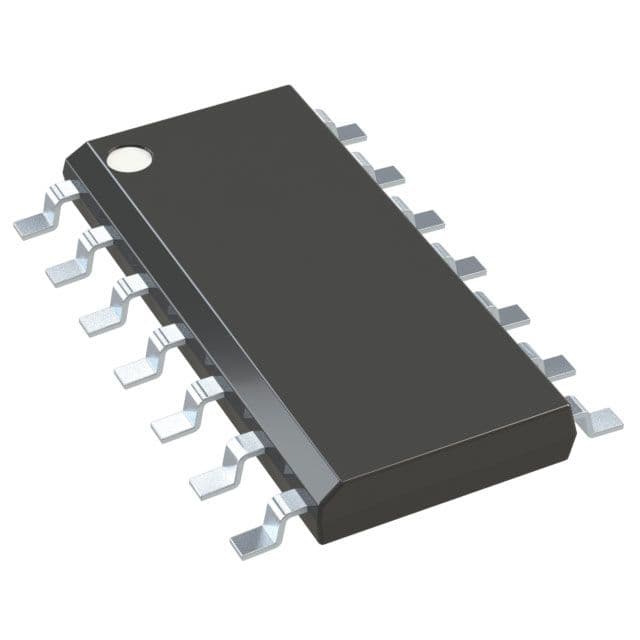

Product Images
