8-bit RISC microcontroller featuring 14KB FLASH memory and 1KB RAM. Operates at up to 32MHz with an 8-bit address and data bus. Offers 12 programmable I/O pins, 8 ADC channels, and 2 PWM channels. Supports I2C, SPI, UART, USART, RS-232, and LIN interfaces. Packaged in PDIP for through-hole mounting, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackagePDIP
Current8uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC16F1705-I/P technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
5mm
Interface
I2C, SPI, UART, USART, RS-232, LIN
Length
19.7mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Through Hole
Number of ADC Channels
8
Number of I/Os
12
Number of Programmable I/O
12
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
8uA
Watchdog Timer
Yes
Weight
0.057144oz
Width
0.195mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1705-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1705-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

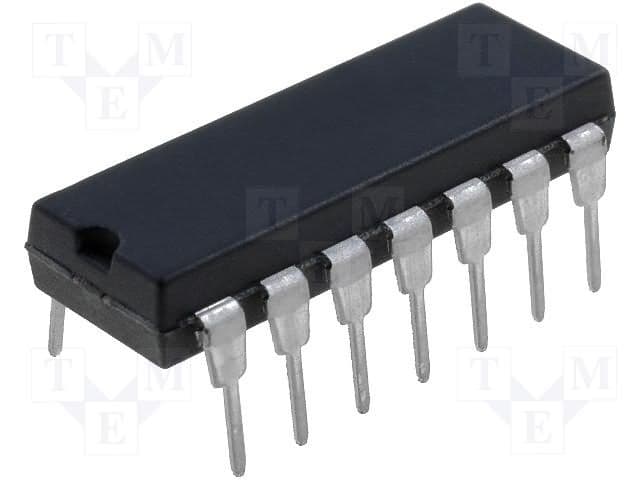

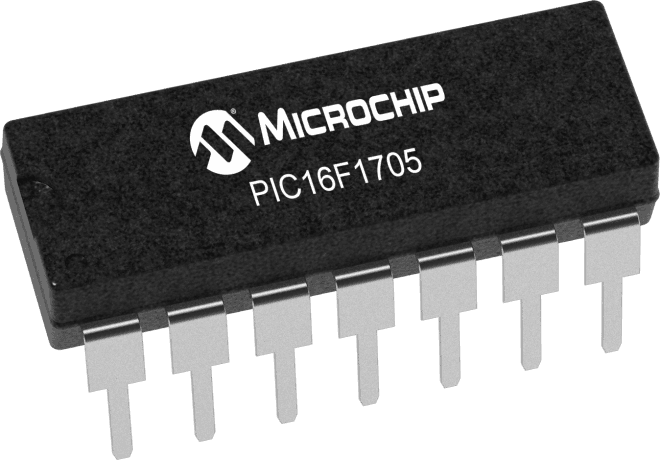

Product Images
