8-bit RISC microcontroller featuring 7KB FLASH memory and 512B RAM. Operates at up to 32MHz with an internal oscillator and supports I2C, SPI, and UART interfaces. Includes 18 programmable I/Os, 12 ADC channels, and 2 PWM channels. Packaged in PDIP, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
Frequency32MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC16F1708-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Height
0.195inch
Interface
I2C, SPI, UART, USART
Length
2.095inch
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
12
Number of I/Os
18
Number of Programmable I/O
18
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1708-E/P Datasheet
Download the complete datasheet for Microchip PIC16F1708-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

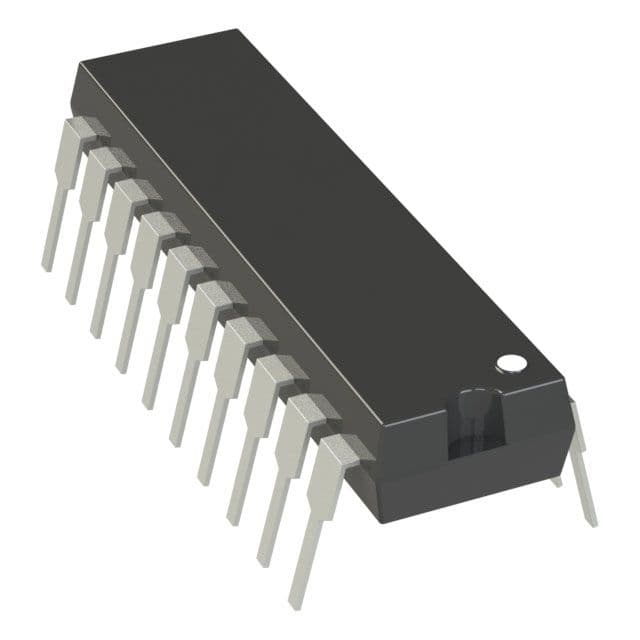

Product Images
