8-bit RISC microcontroller featuring an 8-bit address and data bus, operating at up to 32MHz. This FLASH memory microcontroller offers 7KB of program memory and 512B of RAM, with 18 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, 12 ADC channels, and 2 PWM channels. Designed for a supply voltage range of 2.3V to 5.5V, it operates from -40°C to 85°C and is packaged in a 38-pin SOIC.
Frequency32MHz
PackageSOIC
Current8uA
Quick Jump:
Technical Specifications
Microchip PIC16F1708-I/SO technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
2.35mm
Interface
I2C, SPI, UART, USART
Length
12.8mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
12
Number of I/Os
18
Number of I2C Channels
1
Number of Programmable I/O
18
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
8uA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1708-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1708-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

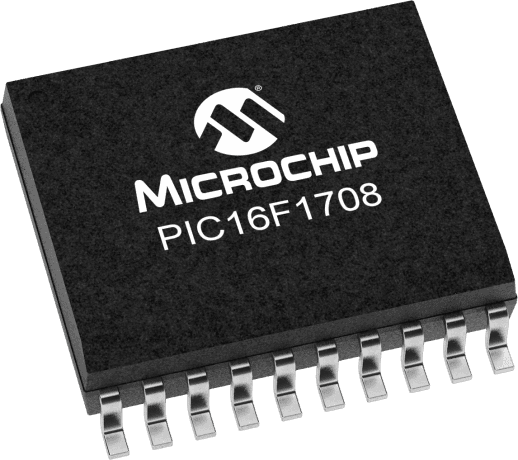

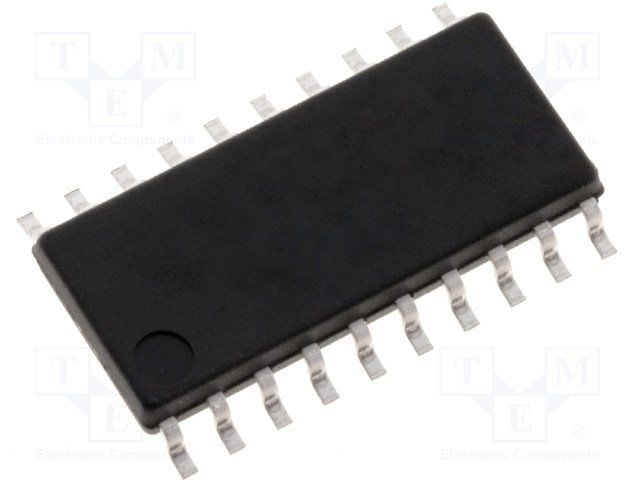

Product Images
