8-bit RISC microcontroller featuring 14KB FLASH memory and 1KB RAM. Operates at a maximum frequency of 32MHz with an 8-bit data bus. Offers 18 programmable I/Os, 12 ADC channels, and 5 timers/counters. Supports I2C, SPI, UART, USART, LIN, and RS-232 interfaces. Packaged in a surface-mount SSOP with a 5.6mm width and 1.85mm height, suitable for operation between -40°C and 85°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1709T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Height
1.85mm
Interface
I2C, SPI, UART, USART, LIN, RS-232
Length
5.6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
18
Number of Programmable I/O
18
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1709T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1709T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

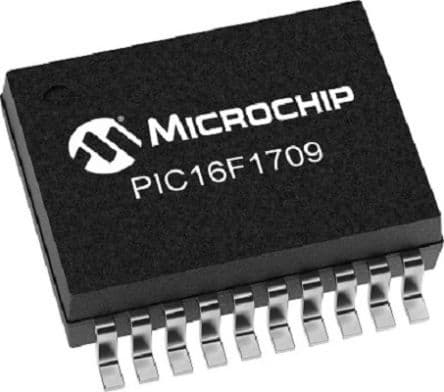

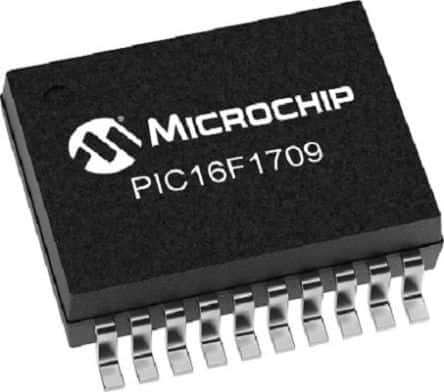

Product Images
