8-bit RISC microcontroller featuring a PIC core architecture. Operates at up to 32MHz with 7KB FLASH memory and 512B RAM. Offers 17 ADC channels, 2 PWM channels, and 5 timers/counters. Supports I2C, SPI, and UART interfaces, with 25 programmable I/Os. Surface mountable in a QFN package, with an operating voltage range of 2.3V to 5.5V.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1713T-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Height
0.9mm
Interface
I2C, SPI, UART, USART
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
25
Number of Programmable I/O
25
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
2.5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.002497oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1713T-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1713T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

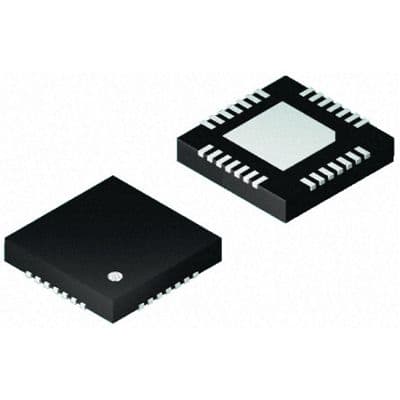

Product Images
