8-bit RISC microcontroller featuring a PIC core architecture. Operates at a maximum frequency of 32MHz with 7KB of FLASH memory and 512B of RAM. Offers 25 programmable I/O pins, 17 ADC channels, and 5 timers/counters. Supports I2C, SPI, USART, UART, RS-232, and LIN interfaces. Packaged in a lead-free SSOP surface mount case, suitable for operation between -40°C and 85°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1713T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Height
2mm
Interface
I2C, SPI, USART, UART, RS-232, LIN
Lead Free
Lead Free
Length
10.2mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
25
Number of Programmable I/O
25
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Width
7.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1713T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1713T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

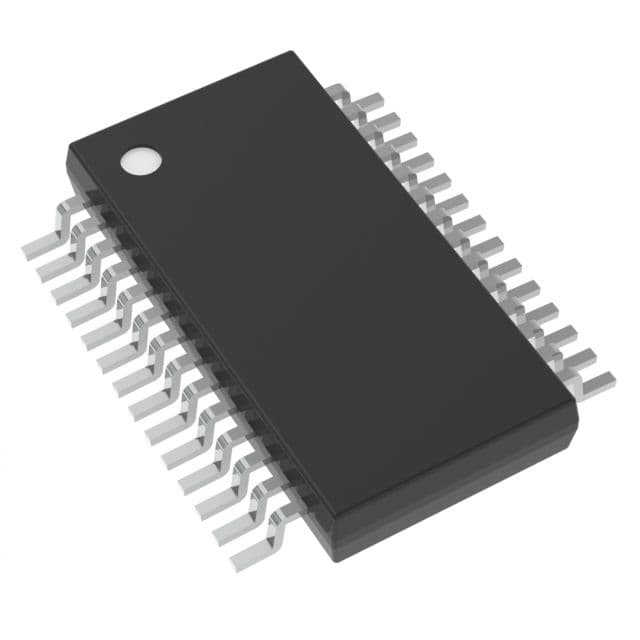

Product Images
