8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount SSOP package offers 14KB of FLASH memory, 1024B RAM, and 25 programmable I/Os. Integrated peripherals include I2C, SPI, USART, UART, RS-232, LIN interfaces, 25 ADC channels, 2 PWM channels, and 5 timers/counters. Operates from 2.3V to 5.5V supply voltage with a wide temperature range of -40°C to 85°C.
Frequency32MHz
PackageSSOP
Current8uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1716-I/SS technical specifications.
General
Address Bus Width
8b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, USART, UART, RS-232, LIN
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
25
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1024B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
8uA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1716-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1716-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

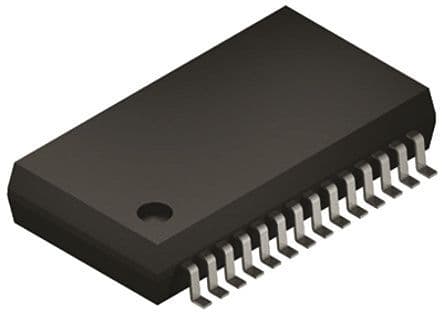

Product Images
