8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount QFN package offers 14KB of FLASH memory and 1024B of RAM, with 25 I/Os including 17 programmable. Integrated peripherals include 25 ADC channels, 2 PWM channels, 5 timers/counters, and 1 UART channel, supporting I2C, SPI, UART, USART, and LIN interfaces. Operating voltage ranges from 2.3V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1716T-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Height
0.9mm
Interface
I2C, SPI, UART, USART, LIN
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
25
Number of I/Os
25
Number of Programmable I/O
17
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
2.5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1024B
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Watchdog Timer
Yes
Weight
0.002497oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1716T-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1716T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

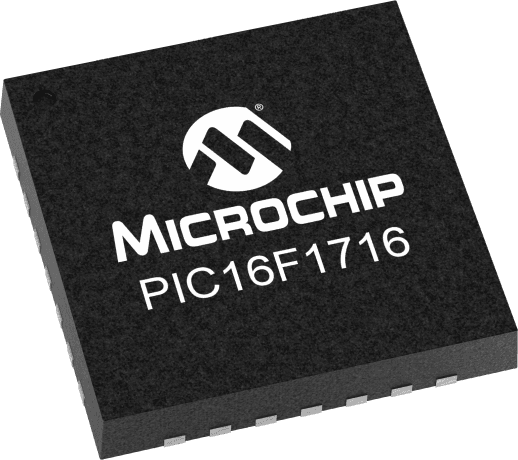

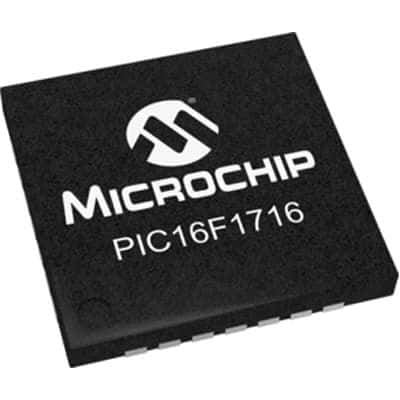

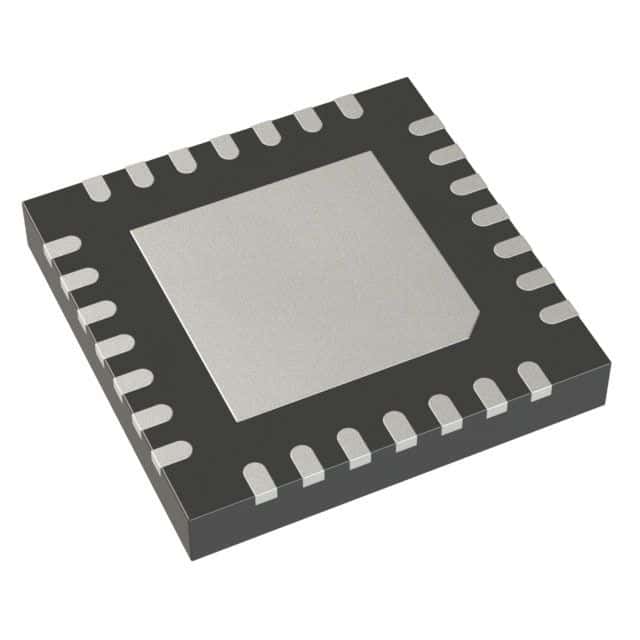

Product Images
