8-bit RISC microcontroller featuring 28KB FLASH memory and 2KB RAM. Operates at up to 16MHz with an internal oscillator and supports I2C, SPI, RS-232, LIN, and USART interfaces. Includes 17 ADC channels, 2 PWM channels, and 5 timers/counters. Packaged in a 5.6mm x 10.5mm x 1.95mm SSOP for surface mounting, with an operating temperature range of -40°C to 125°C.
Frequency16MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1718-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Height
1.95mm
Interface
I2C, SPI, RS-232, LIN, UART, USART
Length
10.5mm
Max Frequency
16MHz
Max Operating Temperature
125°C
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
17
Number of I/Os
24
Number of I2C Channels
1
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
0
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Weight
0.080001oz
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1718-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F1718-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

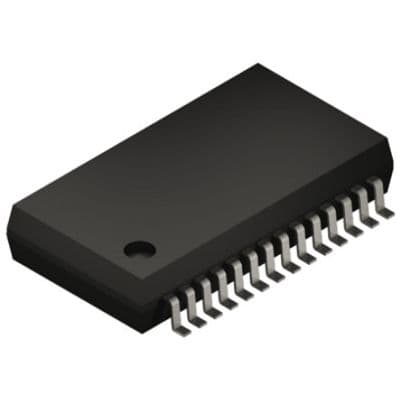

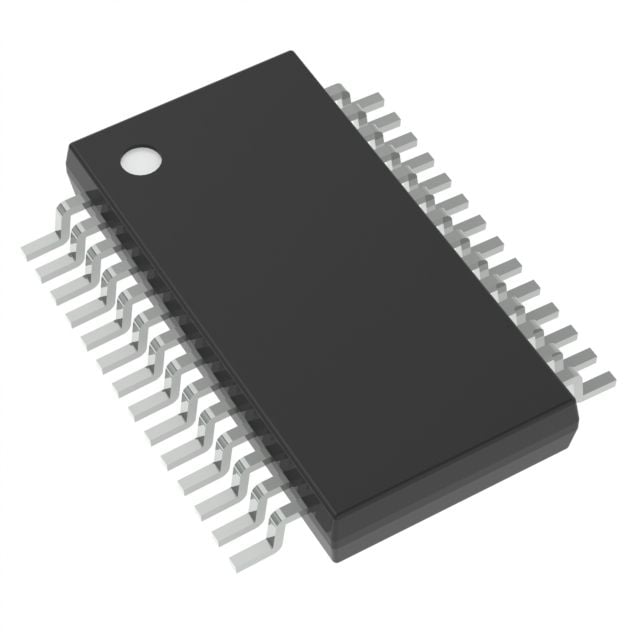

Product Images
