8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 28KB FLASH memory, 2KB RAM, and 24 I/O pins. Integrated peripherals include 17 ADC channels, 5 timers/counters, 2 PWM channels, and multiple communication interfaces such as I2C, SPI, UART, USART, and LIN. Designed for a wide operating temperature range of -40°C to 85°C, it supports an operating supply voltage up to 5.5V and is RoHS compliant.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1718T-I/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Height | 2mm |
| Interface | I2C, SPI, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 28KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of ADC Channels | 17 |
| Number of I/Os | 24 |
| Number of PWM Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Number of USB Channels | 0 |
| Operating Supply Voltage | 5.5V |
| Oscillator Type | Internal |
| Package Quantity | 2100 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 2KB |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Weight | 0.080001oz |
| Width | 7.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1718T-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1718T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

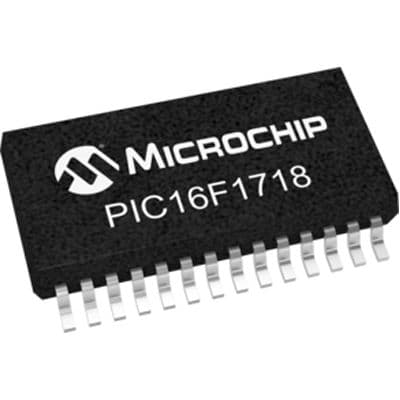

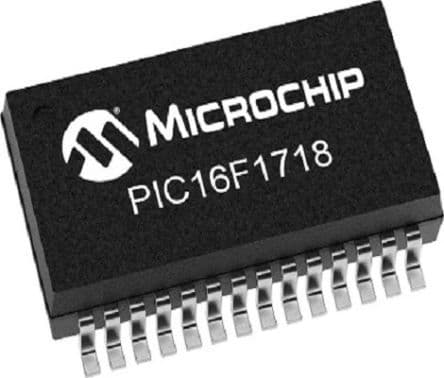

Product Images
