8-bit RISC microcontroller featuring a PIC core, operating at up to 32MHz with an internal oscillator. Offers 28KB FLASH memory, 2KB RAM, and 35 I/O pins. Includes I2C, SPI, and UART interfaces, 28 ADC channels, and 2 PWM channels. Designed for surface mount with a compact 5mm x 4mm x 0.5mm package, operating from 2.5V to 5.5V within a -40°C to 85°C temperature range.
Frequency16MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1719-I/MV technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Height
0.5mm
Interface
I2C, SPI, UART, USART
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
28
Number of I/Os
35
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1719-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1719-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

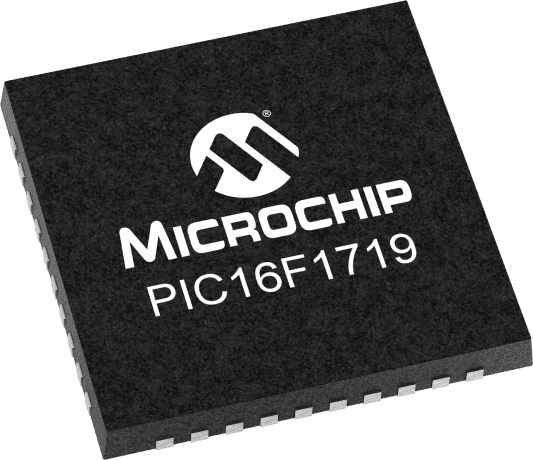

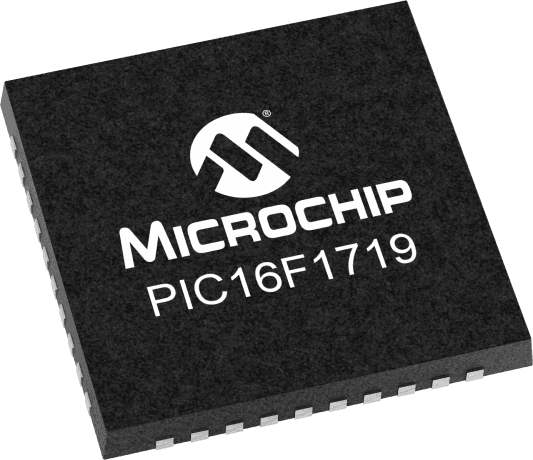

Product Images
