8-bit RISC microcontroller featuring 28KB FLASH memory and 2KB RAM. Operates at a maximum frequency of 32MHz with an 8-bit data bus width. Offers 35 I/Os, 28 ADC channels, and 5 timers/counters, supporting I2C, SPI, and UART interfaces. Surface mount TQFP package with dimensions of 12mm x 12mm x 1.2mm, suitable for operation between -40°C and 85°C.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1719T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Height
1.2mm
Interface
I2C, SPI, UART, USART
Length
12mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
28KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
28
Number of I/Os
35
Number of PWM Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
0
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1719T-I/PT Datasheet
Download the complete datasheet for Microchip PIC16F1719T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

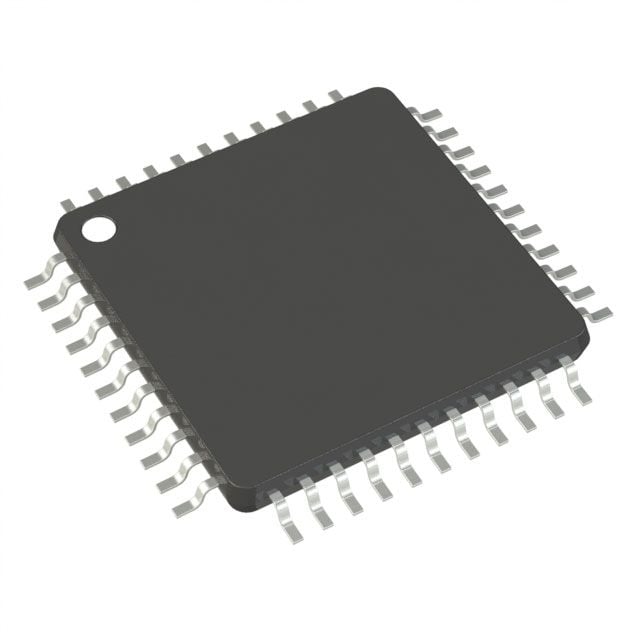

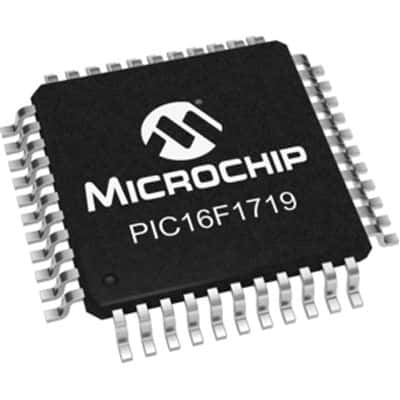

Product Images
