8-bit RISC microcontroller featuring 14KB FLASH and 1KB RAM memory. Offers 12 I/O pins, 8 analog input channels with 1 A/D converter, and 2 PWM channels. Supports I2C, SPI, and UART/USART interfaces, along with 4 timers/counters. Operates from 2.3V to 5.5V with a temperature range of -40°C to 85°C. Surface mountable in a SOIC package, it includes peripherals like Brown-out Detect/Reset, POR, and WDT.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1765-I/SL technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Height
1.75mm
Interface
I2C, SPI, UART, USART
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of I/Os
12
Number of I2C Channels
1
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1765-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1765-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

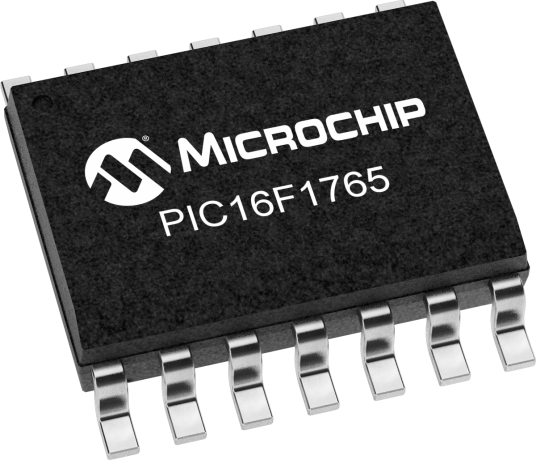

Product Images
