Microchip
PIC16F1783-E/SS
8-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Frequency32MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16F1783-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of I/Os
24
Number of Programmable I/O
24
Number of Timers/Counters
3
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1783-E/SS Datasheet
Download the complete datasheet for Microchip PIC16F1783-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

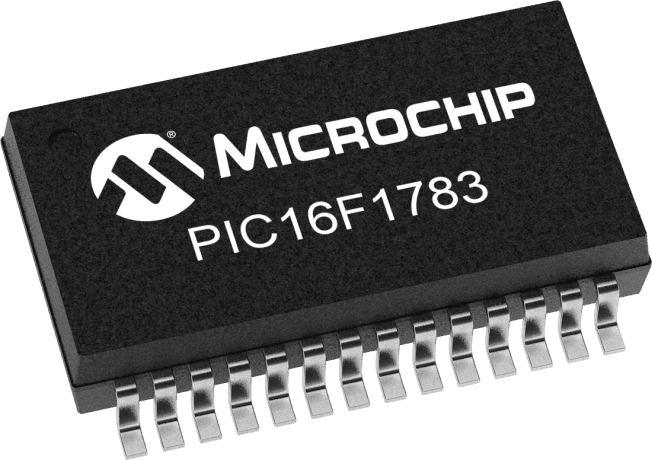

Product Images
