8-bit RISC Microcontroller featuring a PIC core architecture, operating at up to 32MHz. This QFN package MCU offers 7KB of FLASH memory and 512B of RAM, with 24 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, 11 ADC channels, and 2 PWM channels. It operates from a 2.3V to 5.5V supply and boasts a wide operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageQFN
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1783-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
2.3V
Number of ADC Channels
11
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
0
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.1mA
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1783-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1783-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

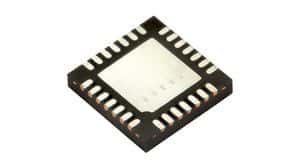

Product Images
