8-bit RISC microcontroller featuring 32MHz operation and 7KB FLASH memory. This integrated circuit offers 512B RAM, 24 programmable I/Os, and multiple communication interfaces including I2C, SPI, and UART. Key peripherals include 2 PWM channels, 3 timers/counters, and a watchdog timer. Operating from 2.3V to 5.5V, this lead-free component is housed in a 4x4mm UQFN-28 package with a 0.5mm height.
Frequency32MHz
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1783-I/MV technical specifications.
General
Address Bus Width
8b
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.5mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
4mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
11
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
0
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.1mA
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1783-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1783-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

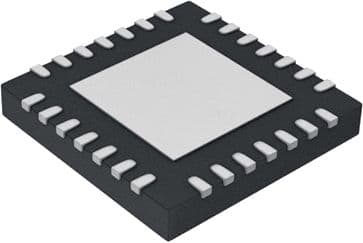

Product Images
