8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This QFN-packaged MCU offers 7KB of FLASH memory, 512B of RAM, and 35 I/O pins, including 36 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART, USB, 14 ADC channels, 3 timers/counters, and PWM functionality. It supports a supply voltage range of 2.5V to 5.5V and operates from -40°C to 85°C.
Frequency32MHz
PackageQFN
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1784-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
8mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Number of ADC Channels
14
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
2.1mA
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1784-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1784-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

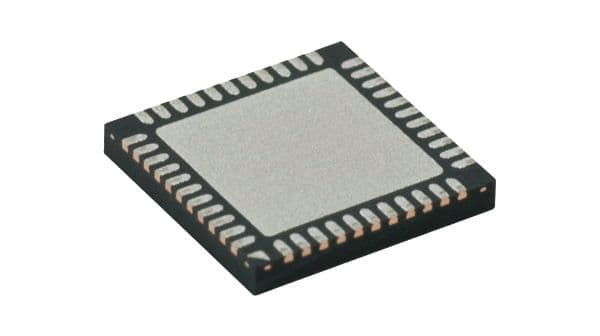

Product Images
