8-bit RISC microcontroller featuring a 32MHz core frequency and 7KB FLASH memory. Offers 35 I/Os, including 36 programmable I/Os, with I2C, SPI, UART, USART, and USB interfaces. Includes 14 ADC channels, 3 PWM channels, and 3 timers/counters. Operates from 2.5V to 5.5V supply voltage with a temperature range of -40°C to 85°C. Compact 5mm x 5mm x 0.5mm package.
Frequency32MHz
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1784-I/MV technical specifications.
General
Address Bus Width
8b
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.5mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Number of ADC Channels
14
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
2.1mA
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1784-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1784-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

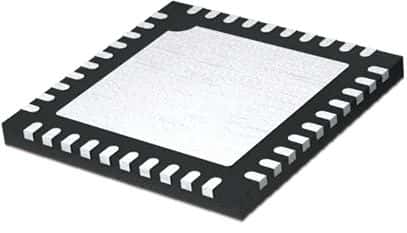

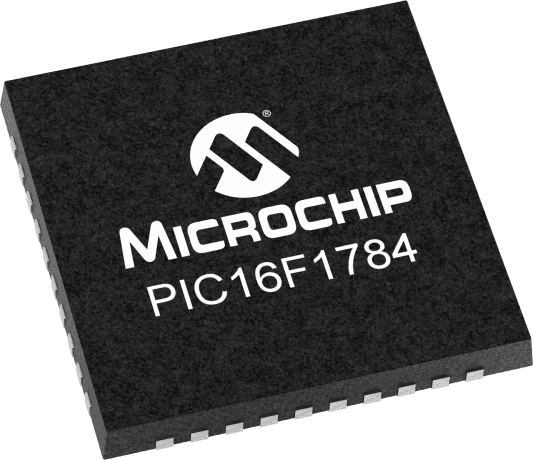

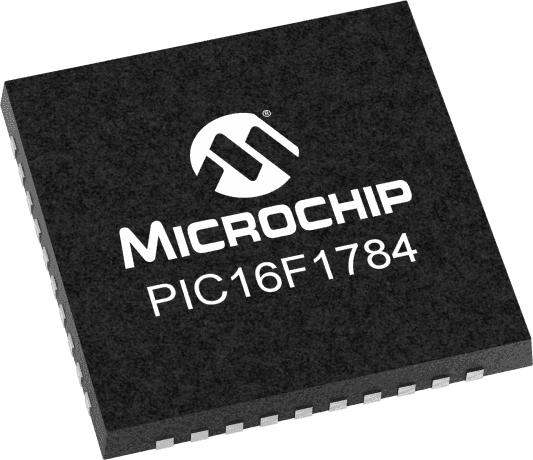

Product Images
