8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 14KB of FLASH memory, 1KB RAM, and 35 I/Os. Integrated peripherals include I2C, SPI, UART, USART interfaces, 14 ADC channels, and 3 PWM channels. Designed for a supply voltage range of 2.3V to 5.5V, with operating temperatures from -40°C to 85°C.
Frequency32MHz
Current2.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16F1787-I/MV technical specifications.
General
Address Bus Width
8b
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.5mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
14
Number of I/Os
35
Number of I2C Channels
1
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
2.1mA
Watchdog Timer
Yes
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1787-I/MV Datasheet
Download the complete datasheet for Microchip PIC16F1787-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

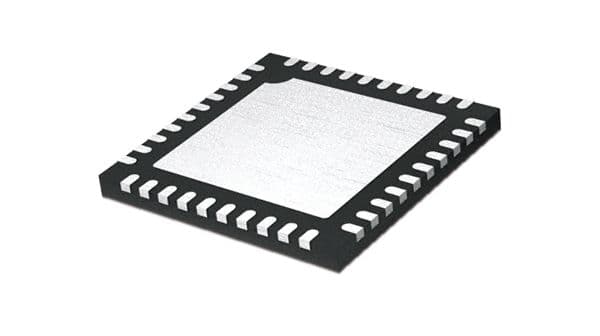

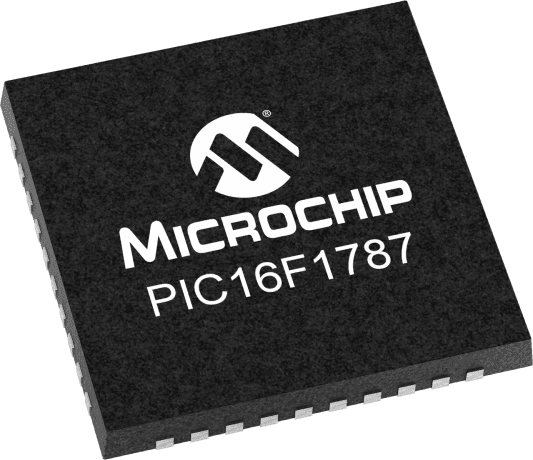

Product Images
