8-bit RISC microcontroller featuring a PIC core architecture, operating at up to 32MHz. This DIP-packaged MCU offers 28KB of FLASH memory, 2KB of RAM, and 24 I/O pins. Integrated peripherals include I2C, SPI, UART, USART, PWM, and a watchdog timer. Supports a supply voltage range of 2.3V to 5.5V with a maximum power dissipation of 800mW. Operating temperature range is -40°C to 85°C.
Frequency32MHz
PackageDIP
Current2.1mA
Quick Jump:
Technical Specifications
Microchip PIC16F1788-I/SP technical specifications.
General
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
1.4inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
28KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Number of ADC Channels
11
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
25
Number of SPI Channels
1
Number of Timers/Counters
3
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 16F
Supply Current
2.1mA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1788-I/SP Datasheet
Download the complete datasheet for Microchip PIC16F1788-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

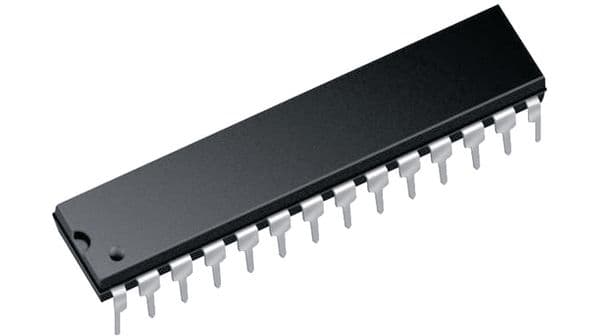

Product Images
