8-bit RISC microcontroller featuring 32MHz operation and 3.5KB FLASH memory. This PIC microcontroller offers 128B RAM, 8 ADC channels, and 11 programmable I/O pins. Integrated peripherals include I2C, SPI, USART, UART, LIN interfaces, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Operating from 1.8V to 5.5V, it is housed in a 4x4mm QFN package with a maximum power dissipation of 800mW.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC16F1823-I/ML technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, USART, UART, LIN |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 3.5KB |
| Memory Type | FLASH |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 8 |
| Number of I/Os | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 12 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Watchdog Timer | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1823-I/ML Datasheet
Download the complete datasheet for Microchip PIC16F1823-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

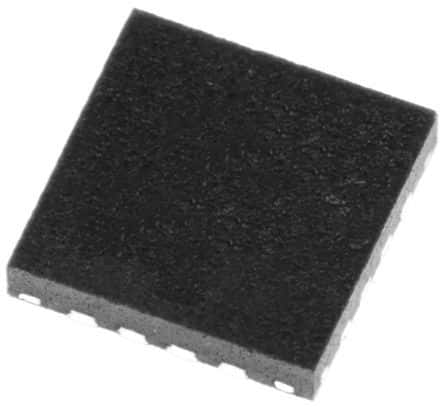

Product Images
