8-bit RISC microcontroller featuring 32MHz operation and 3.5KB FLASH memory. This PDIP-packaged MCU offers 11 I/Os, including 12 programmable I/O pins, and supports SPI, I2C, UART, and USART interfaces. Integrated peripherals include PWM, Brown-out Detect/Reset, POR, WDT, and three timers/counters. Operating voltage ranges from 1.8V to 5.5V, with a supply current of 145uA.
Frequency32MHz
PackagePDIP
Current145uA
Quick Jump:
Technical Specifications
Microchip PIC16F1823-I/P technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 0.195inch |
| Interface | SPI, I2C, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 19.69mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 3.5KB |
| Memory Type | FLASH |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 8 |
| Number of I/Os | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 12 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | PWM, Brown-out Detect/Reset, POR, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 145uA |
| Watchdog Timer | Yes |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1823-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1823-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

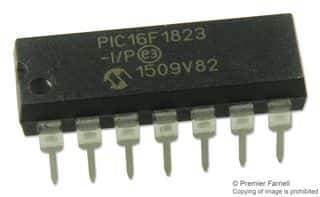

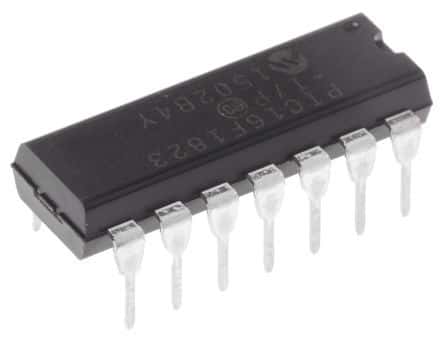

Product Images
