8-bit PIC RISC microcontroller featuring 3.5KB Flash memory and 128B RAM. Operates at up to 32MHz with 11 I/O pins, supporting I2C, SPI, USART, and LIN interfaces. Includes 8 ADC channels, 3 timers/counters, and peripherals like Brown-out Detect, POR, PWM, and WDT. Packaged in a 14-pin SOIC with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSOIC
Current145uA
Quick Jump:
Technical Specifications
Microchip PIC16F1823-I/SL technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | SOIC |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 1.5mm |
| Interface | I2C, SPI, USART, UART, LIN |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 3.5KB |
| Memory Type | FLASH |
| Min Supply Voltage | 2.3V |
| Number of ADC Channels | 8 |
| Number of I/Os | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 12 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 16F |
| Supply Current | 145uA |
| Watchdog Timer | Yes |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC16F1823-I/SL Datasheet
Download the complete datasheet for Microchip PIC16F1823-I/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

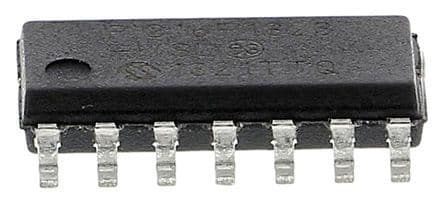

Product Images
