8-bit RISC microcontroller featuring 32MHz operation and 14KB FLASH memory. This integrated circuit offers 1KB RAM, 11 I/O pins, and supports I2C, SPI, USART, UART, and LIN interfaces. Equipped with 8 ADC channels, 4 PWM channels, and 5 timers/counters, it operates from 1.8V to 5.5V supply voltage. Packaged in a 14-pin SOIC with dimensions of 8.65mm x 3.9mm x 1.5mm, this RoHS compliant component is suitable for operation between -40°C and 125°C.
Frequency32MHz
PackageSOIC
Current2.8mA
Quick Jump:
Technical Specifications
Microchip PIC16F1825-E/SL technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.5mm
Interface
I2C, SPI, USART, UART, LIN
Lead Free
Lead Free
Length
8.65mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
14KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.8mA
Watchdog Timer
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1825-E/SL Datasheet
Download the complete datasheet for Microchip PIC16F1825-E/SL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

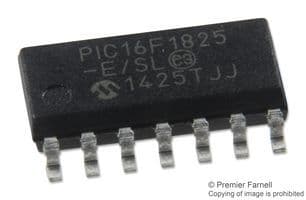

Product Images
