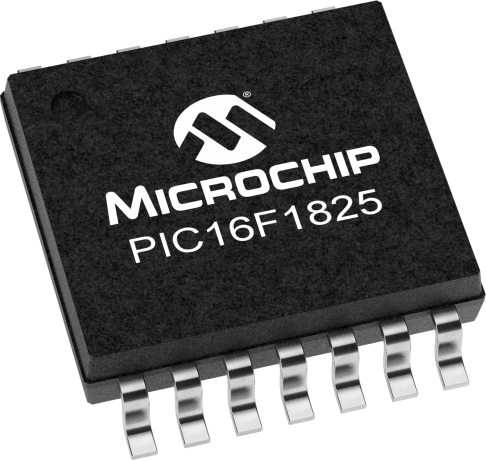

8-bit RISC Flash Microcontroller operating at up to 32MHz. Features 14KB Flash memory, 1KB RAM, and 11 I/O pins. Integrated peripherals include I2C, SPI, USART, UART, LIN interfaces, 4 PWM channels, and 5 timers. Supports 8 ADC channels with one A/D converter. Packaged in a 14-pin TSSOP with a 1.05mm height, 5.1mm length, and 4.5mm width. Operates from 1.8V to 5.5V supply, with a max power dissipation of 800mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC16F1825-E/ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip PIC16F1825-E/ST technical specifications.
| Address Bus Width | 8b |
| Package/Case | TSSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 32MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, USART, UART, LIN |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 14KB |
| Memory Type | FLASH |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of Bits | 8 |
| Number of I/Os | 11 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 12 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 1 |
| Packaging | Rail/Tube |
| Peripherals | PWM, POR, WDT |
| Radiation Hardening | No |
| RAM Size | 1KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2.8mA |
| Watchdog Timer | Yes |
| Width | 4.5mm |
| RoHS | Compliant |
