8-bit RISC Flash Microcontroller, operating at up to 32MHz. Features 14KB Flash memory, 1KB RAM, and 11 I/O pins. Integrated peripherals include I2C, SPI, USART, UART, LIN interfaces, 8 ADC channels, and 4 PWM channels. Packaged in a 14-pin TSSOP, this lead-free component supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency32MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Microchip PIC16F1825-I/ST technical specifications.
General
Package/Case
TSSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.041inch
Interface
I2C, SPI, USART, UART, LIN
Lead Free
Lead Free
Length
0.2inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
14KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
11
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Watchdog Timer
Yes
Width
0.177inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1825-I/ST Datasheet
Download the complete datasheet for Microchip PIC16F1825-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

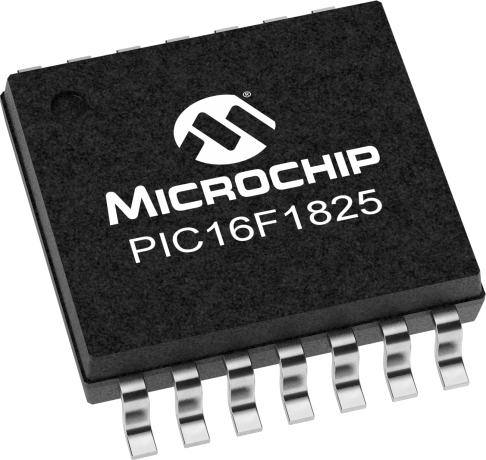

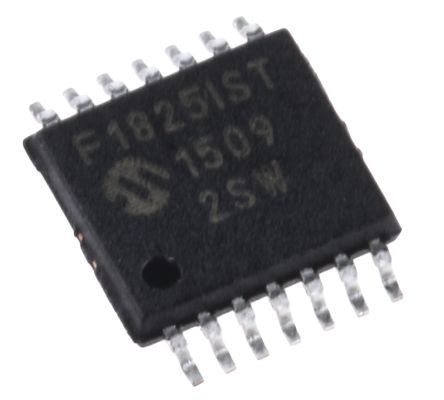

Product Images
