8-bit RISC Flash Microcontroller operating at up to 32MHz. Features 3.5KB Flash memory, 256B RAM, and 15 programmable I/O pins. Includes 12 ADC channels, 1 PWM channel, and 3 timers/counters. Supports I2C, SPI, USB, SCI, and UART interfaces. Packaged in a 0.300 inch PDIP with through-hole termination. RoHS compliant with a wide operating temperature range of -40°C to 85°C.
Frequency32MHz
PackagePDIP
Current4mA
Quick Jump:
Technical Specifications
Microchip PIC16F1826-I/P technical specifications.
General
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
0.195inch
Interface
I2C, SPI, USB, SCI, UART, USART
Lead Free
Lead Free
Length
23.37mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
3.5KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
12
Number of I/Os
15
Number of I2C Channels
1
Number of Programmable I/O
15
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Supply Current
4mA
Termination
Through Hole
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1826-I/P Datasheet
Download the complete datasheet for Microchip PIC16F1826-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

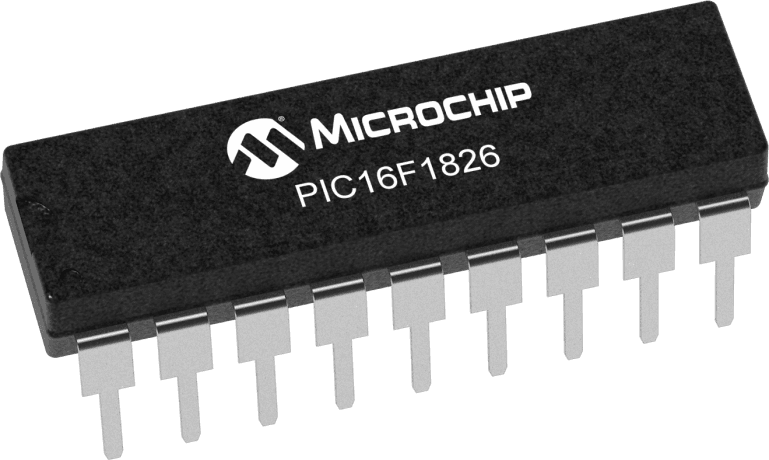

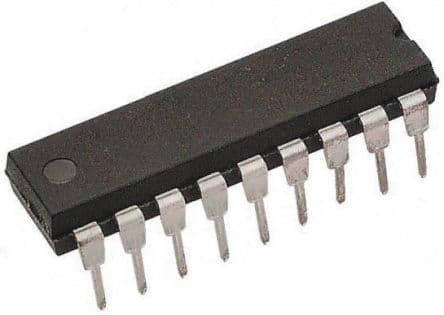

Product Images
