8-bit RISC Flash Microcontroller operating at up to 32MHz. Features 3.5KB Flash memory, 256B RAM, and 15 programmable I/O pins. Supports I2C, SPI, and UART/USART interfaces, with 12 ADC channels and 3 timers. Packaged in an 18-pin SOIC (PDSO18) with a 7.5mm width, this RoHS compliant component operates from 1.8V to 5.5V.
Frequency32MHz
PackageSOIC
Current4mA
Quick Jump:
Technical Specifications
Microchip PIC16F1826-I/SO technical specifications.
General
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
2.35mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
11.55mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
3.5KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
15
Number of I2C Channels
1
Number of Programmable I/O
15
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Supply Current
4mA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1826-I/SO Datasheet
Download the complete datasheet for Microchip PIC16F1826-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

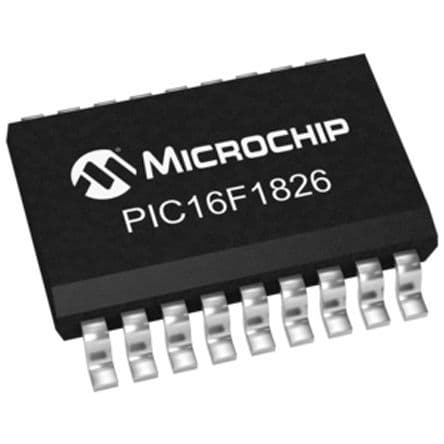

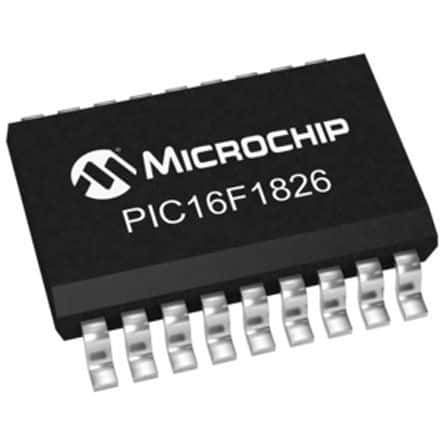

Product Images
