8-bit PIC RISC microcontroller featuring 7KB Flash memory and 384B RAM. Operates at up to 32MHz with 15 programmable I/Os, supporting I2C, SPI, and UART interfaces. Includes 12 ADC channels, 4 PWM channels, and 5 timers. Packaged in a 20-pin SSOP with a temperature range of -40°C to 85°C.
Frequency32MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC16F1827-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
15
Number of I2C Channels
2
Number of Programmable I/O
15
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
384B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ mTouch™ 16F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F1827-I/SS Datasheet
Download the complete datasheet for Microchip PIC16F1827-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

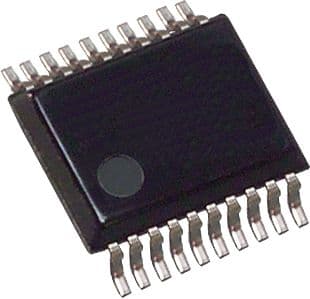

Product Images
